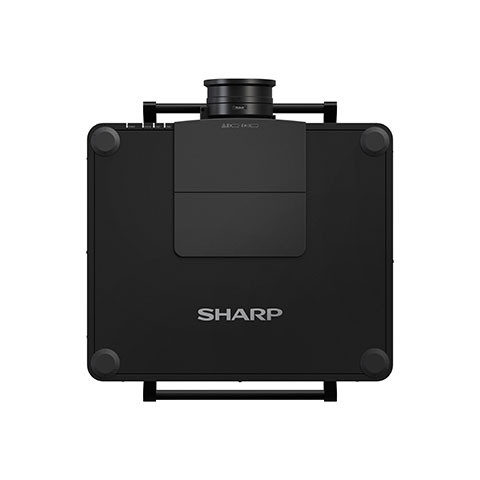

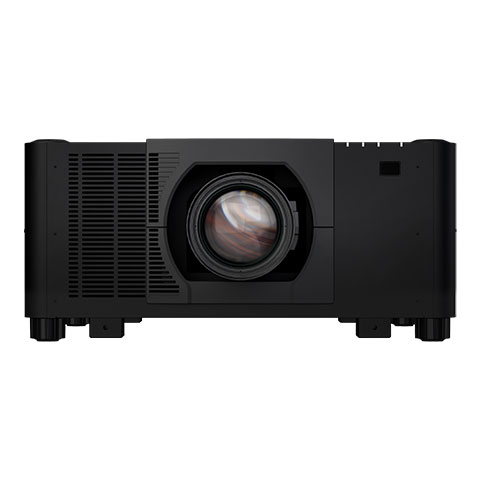

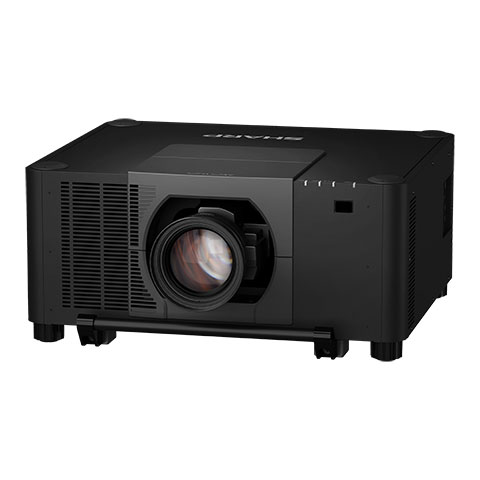

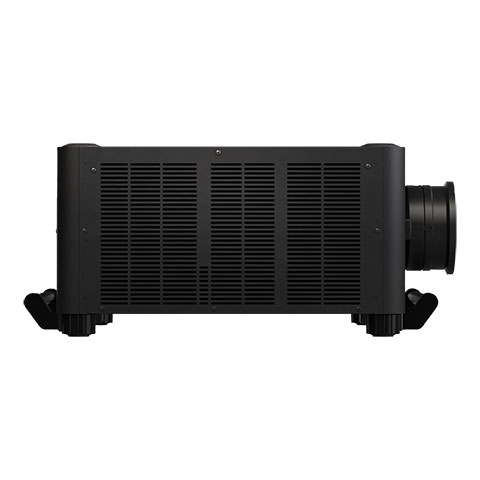

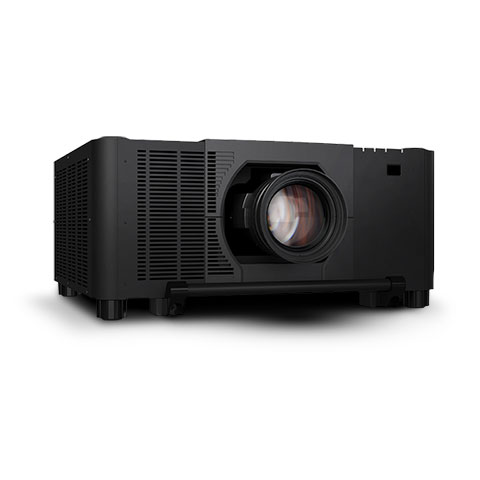

Name: 20,000-Lumen Professional Installation Projector w/ 4K support
Brand: NEC
SKU: XP-A201U-B
Price: $36,799.00 USD USD

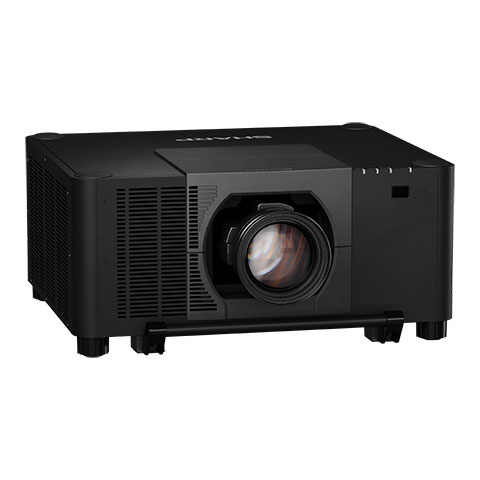

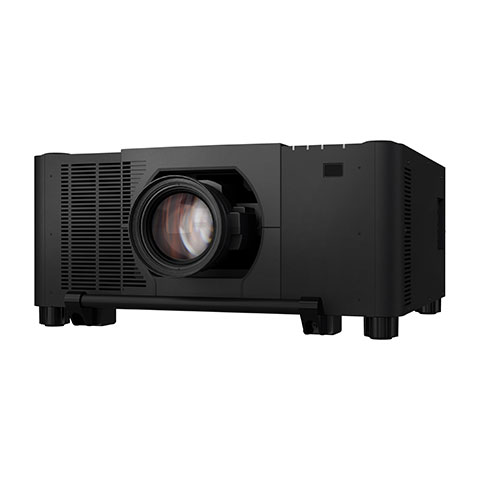

Sharp's A201U-B (black cabinet) is a 20,000-lumen (Center: 21,000lm) 4K Ready LCD RB laser projector with advanced professional installation features for higher education and corporate users. With its multitude of digital inputs, connection to any computer or high definition device is possible. Enjoy design and installation flexibility with a complete line of optional motorized lenses (lens shift, focus and zoom), roll free installation capabilities. The HDBaseT input provides a single connection for uncompressed full HD digital video, audio, ethernet power and various control signals. HDBaseT Repeater allows cascading of the signal for edge-blending or stacking applications.

4K Ready - Display stunning 4K 60P content using Sharp’s proprietary high performance video processing/scaling chip.
Learning of basic control of competitors product reducing the need for reprogramming of a control system. (call Sharp for complete list)
Integrated software applications such as AMX Beacon, Crestron Roomview, Extron XTP and PJ link allow for complete interactivity and control.
20,000-lumen (Center: 21,000lm) brightness provides brilliant images in most high ambient lighting situations.
ProAssist™ is software for controlling the projector and adjusting the projected image on the screen from a computer via a network. It allows necessary adjustments to be carried out easily when combining several projectors together to project a large screen in a classroom, meeting room, auditorium or other large space.

Legal Disclaimer To California Residents
WARNING: This product can expose you to chemicals including Styrene and Formaldehyde (gas), which are known to the State of California to cause cancer, and Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

Product Specifications

Display

Aspect Ratio	16X10	Screen Resolution	WUXGA 1920x1200
Maximum Resolution	4K 4096 x 2160	Supported Resolutions	80 to 500 in./ 2.0 to 12.7m
Brightness (typical)	20000 Lumens	Brightness (maximum)	21000 Center Lumens
Contrast Ratio (typical)	3,000,000:1 (with Dynamic Contrast)

Synchronization Range

Horizontal (Analog/Digital)	15Khz/24-153kHz	Vertical	50-85Hz, 100Hz, 120Hz

Signal Compatibility/Connectivity

Supported Video Standards	NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM	SD/HD Video Signal Compatibility	480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K
PC Signal Compatibility	VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA, Quad HD	Macintosh Signal Compatibility	Yes
Sync Compatibility	Separate Sync / Composite Sync / Sync on G	External Control	RS-232, IR, Wired Remote, HDBaseT, DDC/CI, RJ-45, USB (USB 2.0)

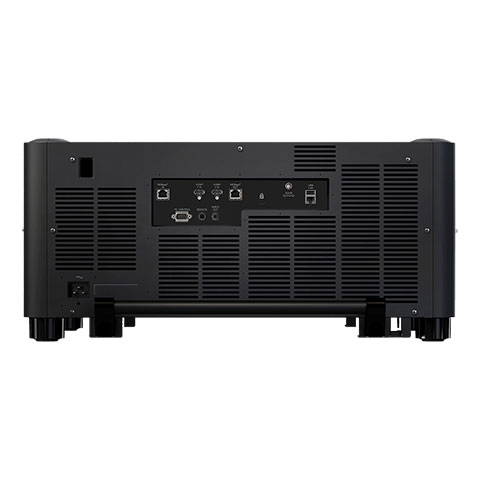

Input Terminals RGB1(digital): HDMI (V2.0) w/HDCP (V2.2/1.4) RGB2(digital): HDMI (V2.0) w/HDCP (V2.2/1.4) RGB3(digital): HDBaseT w/HDCP (V2.2/1.4) RGB4(digital): 3G / HD/ SD SDI (SMPTE ST 424M / SMPTE 292M / SMPTE 259M)		Output Terminals Digital: HDBaseT w/HDCP (V2.2/1.4) Audio: Stereo Mini Jack Audio Out: Stereo Mini Jack

Power Consumption (typical)

On	1530W / 1400W / 0.9W / 0.32W	Input Current	11.9A - 7.8A
Power Requirements	100-240V AC, 50/60 Hz

Physical Specifications

Dimensions (WxHxD) Product: 25.6 x 12.2 x 26.0 in. / 650 x 311 x 661 mm External: 25.6 x 26.0 x 12.2 in. / 650 x 661 x 311mm Shipping: 20.6 x 11.0 x 18.7 in. / 810 x 435 x 735 mm		Weight Net Weight: 85.3 lbs. / 38.7 kg Shipping: 102.5 lbs. / 46.5 kg

Environmental Conditions

Operating Temperature	32-113°F / 0-45°C	Operating Humidity	20 to 85% Humidity (Non-Condensing)
Operating Altitude	0 to 3650 m (11,975 ft)	Storage Temperature	14-122°F / -10 50°C
Storage Humidity	20% - 80% (non-condensing)	Storage Altitude	0-12,000m / 0-39,370ft (above sea level)

Limited Warranty (parts & labor)

Registered owners receive a 5-year or 20,000 hours parts and labor warranty including InstaCare next business day exchange.

Additional Features

4K Ready Motorized Lenses Manual Keystone Correction Quick power on ECO Mode Technology DiCom Simulation NaViSet Administrator 2 Quick power-off Advanced AccuBlend AutoSense ProAssist Software

Optical

Display Technology	1.0" LCD w/ MLA	Light Output(Lumens)	20,000 Lumens
Light Source Life	20,000 hours	Throw Ratio	0.53 to 0.65:1 Motorized Zoom Lens / 0.65 to 0.87:1 Motorized Zoom Lens / 0.86 to 1.25:1 Motorized Zoom Lens / 1.24 to 2.01:1 Motorized Zoom Lens / 1.98 to 3.95:1 Motorized Zoom Lens / 3.95 to 7.51:1 Motorized Zoom Lens
Projection Distance	3.58 to 141 ft. / 1.09 to 43m	Projector Angle	5.8 to 18.1° tele / 11.4 to 25.8° wide

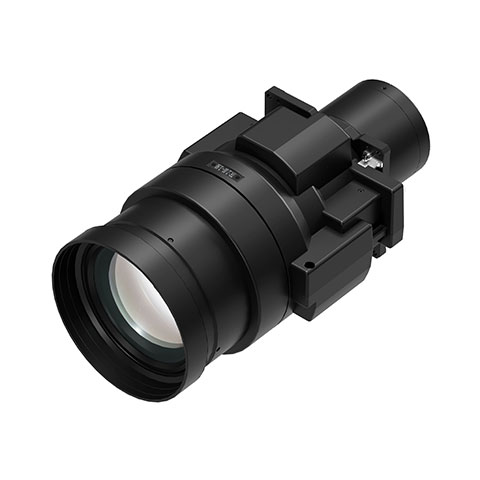

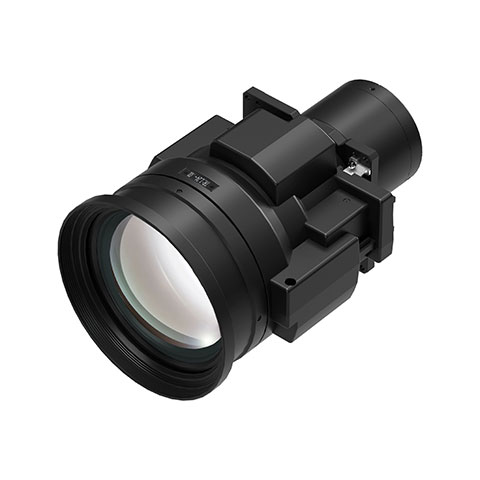

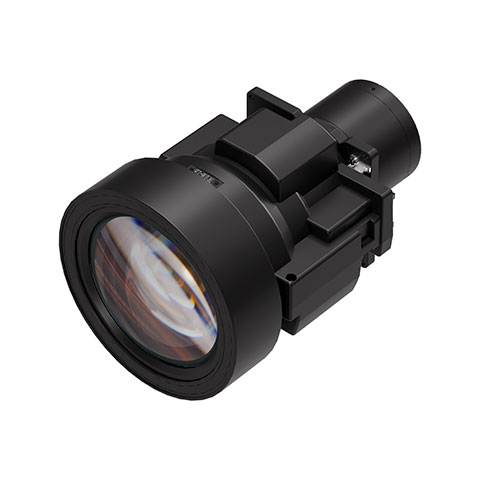

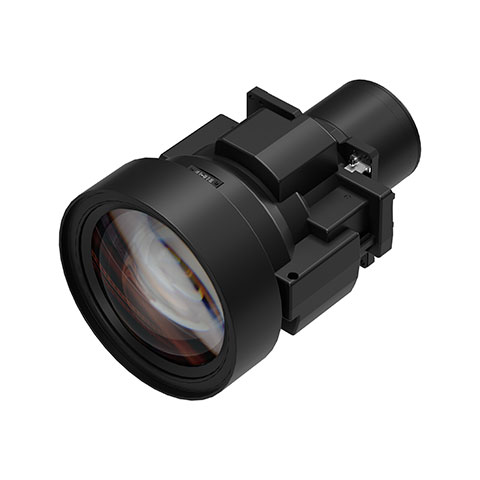

Lens Zoom: Motorized Focus: Motorized F number, fnumber: (NP51ZL/XP-51ZL) F=1.94 to 2.2, f= 12.0 to 14.8mm, (NP52ZL/XP-52ZL) F=1.84 to 2.25, f= 14.4 to 19.1mm, (NP53ZL/XP-53ZL) F=1.8 to 2.24, f= 19.0 to 27.6mm, (NP54ZL/XP-54ZL) F=1.8 to 2.24, f= 27.7 to 44.3mm, (NP55ZL/XP-55ZL) F=1.84 to 2.58, f= 43.8 to 86.0mm, (NP56ZL/XP-56ZL) F=1.85 to 2.41, f= 86.2 to 164.8mm		Keystone Correction	+/- 40° horizontal, +/- 30° vertical

Mechanical

Installation Orientation	Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear	Fan Noise	42 dB normal / 34 dB slient mode

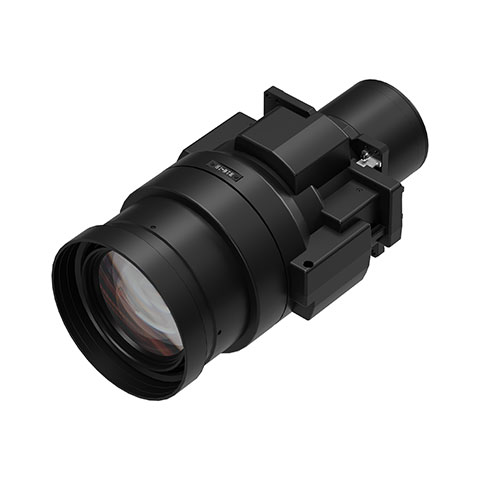

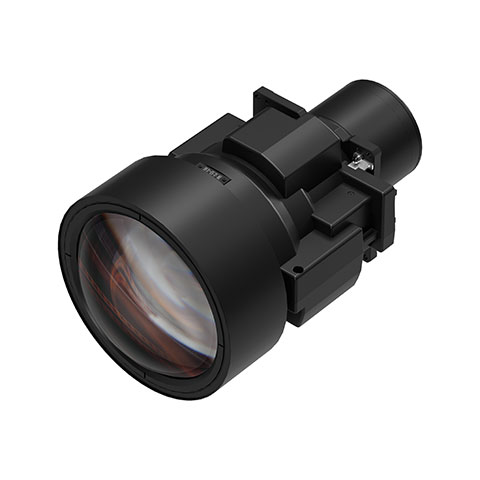

Regulations	USA UL60950-1: 2nd edition, UL 62368-1, 3rd Edition, FCC Part15 Subpart B(ANSI C63.4.2014), CAN/CSA C22.2 No.62368-1-19, 3rd Edition, ICES-003 Issue 7(ANSI C63.4-2014)	Optional Lenses	Motorized Zoom Lens 0.53-0.65 (NP51ZL/XP-51ZL), Motorized Zoom Lens 0.65-0.87 (NP52ZL/XP-52ZL), Motorized Zoom Lens 0.86-1.25 (NP53ZL/XP-53ZL), Motorized Zoom Lens 1.24-2.01 (NP54ZL/XP-54ZL), Motorized Zoom Lens 1.98-3.95 (NP55ZL/XP-55ZL), Motorized Zoom Lens 3.95-7.51 (NP56ZL/XP-56ZL)

Accessories

Included	Remote Control (RMT-PJ40) Power Cord Batteries Quick Guide Important Info Lens Cap Security Sticker Lens Anti-Theft Screw Warranty Sheet Inlet Stopper	Optional	Adjustable Extension Column, 2' - 3' (AEC006009) Adjustable Extension Column, 3' - 5' (AEC012018) Adjustable Extension Column, 12" - 18" (AEC0203) Adjustable Extension Column, 6" - 9" (AEC0305) Ceiling Mount (IPJ2000CM) Motorized Zoom Lens 0.53-0.65 (NP51ZL) Motorized Zoom Lens 0.65-0.87 (NP52ZL) Motorized Zoom Lens 0.86-1.25 (NP53ZL) Motorized Zoom Lens 1.24-2.01 (NP54ZL) Motorized Zoom Lens 1.98-3.95 (NP55ZL) Motorized Zoom Lens 3.95-7.51 (NP56ZL) Remote Control (RMT-PJ40) Motorized Zoom Lens 0.53-0.65 (XP-51ZL) Motorized Zoom Lens 0.65-0.87 (XP-52ZL) Motorized Zoom Lens 0.86-1.25 (XP-53ZL) Motorized Zoom Lens 1.24-2.01 (XP-54ZL) Motorized Zoom Lens 1.98-3.95 (XP-55ZL) Motorized Zoom Lens 3.95-7.51 (XP-56ZL)

Lens Adjustment Functions

Motorized focus, zoom, horizontal/vertical shift, light shutter (dowser) / Range of shift is dependent on lens

Technologies

AutoSense™

Intuitively syncs the projector with most computer signals and features one-touch image optimization.

Portrait Mode

Ability to install a projector in its side to create a 10:16 portrait image

Virtual Remote

Used over the VGA cable to control the projector directly from a computer without the need for additional control cables.

Crestron Roomview

Provides unified management, including the ability to switch the power on and off for multiple projectors connected to a network.

Motorized Zoom and Focus

Simplifies installation and operation by easily adjusting the lens through the remote control.

Quick Startup and Quick Power-Off

Allows users to begin presenting within 3 to 4 seconds and allows immediate power off with no cooling required after shutdown to ensure efficient energy usage.

Cornerstone Correction

Allows for horizontal, vertical and diagonal image correction for aligned images even when the projector is set up at an angle to the screen.

NaViSet Administrator 2™

Control, monitor and manage your display and projector settings in an all in one support system with NaViSet Administrator 2™. This software package provides unified control and asset management across product lines through an intuitive graphical user interface and allows for settings to be updated, tasks to be queried and reports to be generated using RS-232 or TCP/IP communication for large screen displays and projectors or DDC/CI protocol for desktop units.

Roll-Free Installation

Allows the projector to be rotated freely (360°) in order to point up or down depending on the installation requirements.

Variable Audio Out

Adjusts the volume of an external speaker system using the projector's remote control.

4K Ready

Display stunning 4K content using NEC’s proprietary high performance video processing/scaling chip without the loss of critical details.

Built-in Wall Color Correction

Presets provide for adaptive color tone correction to display properly on non-white surfaces.

Dual HDMI inputs (with HDCP)

Ensure quick switching between presentations and allows for simultaneous digital connections of high-definition sources, such as Blu-ray players, cable boxes, satellite receivers and computers

Lens Shift

Vertical and horizontal lens shift enables flexible projector placement.

Power Management

Enables projector to automatically turn off when an incoming signal is not detected from any of the inputs.
